- Type of gate
- Gate width
- Duty
- Horsepower
- Mounting (LH or RH, inside looking out)
- Model
- Voltage/Phase
- Safety devices
- Options

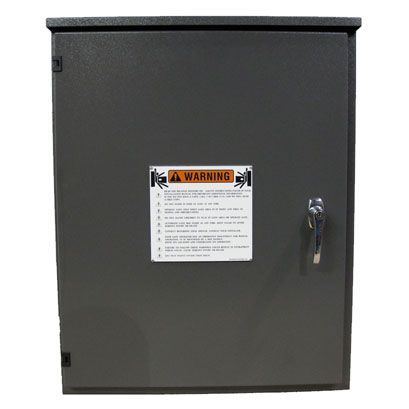

MSW PRO-GOHD Gate Operator
The PRO-GOHD is designed for use on industrial cantilever, single or bi-parting slide gates up to 40ft. (12 m) wide. When ordering a PRO-MSW operator, supply us with the following information:
- 2 year warranty Heavy duty reversing contactor cJw mechanical & electrical interlock Continuous duty industrial motor Timer to close, run-out timer, 1.5 sec time delay, l00VA transformer, control circuit, ON/OFF switch Heavy duty worm gear 40:1 running in oil bath Solenoid actuated brake system 3 phase thermal overload relay protection (for 3-phase operators) 1" cast iron flange pillow block bearings on drive shafts 24V fused control circuit Adjustable friction clutch Fully adjustable rotary limit switches Powder metal limit cams Motor removable without affecting limit setting #50 sprockets and waterproof roller chain drive Emergency disconnect with electrical cutout for manual operation Operator housed in cabinet with hinged door & key lock universa left or right hand mounting Post or pad mount installation Mounting base (optional) Gate attachement brackets and U-clamps Baked on dark grey coat Shipping weight: 2S0Lbs
Features
2 year warranty Heavy duty reversing contactor cJw mechanical & electrical interlock Continuous duty industrial motor Timer to close, run-out timer, 1.5 sec time delay, l00VA transformer, control circuit, ON/OFF switch Heavy duty worm gear 40:1 running in oil bath Solenoid actuated brake system 3 phase thermal overload relay protection (for 3-phase operators) 1" cast iron flange pillow block bearings on drive shafts 24V fused control circuit Adjustable friction clutch Fully adjustable rotary limit switches Powder metal limit cams Motor removable without affecting limit setting #50 sprockets and waterproof roller chain drive Emergency disconnect with electrical cutout for manual operation Operator housed in cabinet with hinged door & key lock universa left or right hand mounting Post or pad mount installation Mounting base (optional) Gate attachement brackets and U-clamps Baked on dark grey coat Shipping weight: 2S0Lbs
