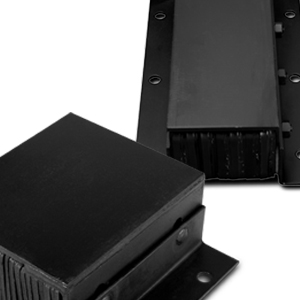

Sentinel Series Steel-Faced Laminated bumpers offer the strongest and most durable loading dock protection. 5/8" (16 mm) of free-floating steel protection resists wear and tear and is highly compatible with applications involving air-ride trailers and yard jockeys. The tire rubber pads are laminated between ¼" (6 mm) steel angles and secured with ¾" (19 mm) rods, offering the building wall solid protection from impact damage.

PRODUCT DETAILS

• Standard 4" and 6" (102 mm and 152 mm) projection
• Dock bumper bracketing available to support larger projections
• Supports horizontal or vertical installations
• Wide range of sizes to suit different applications
• Five-year limited warranty
• Available models include:
  • BG410-14SF (4" x 10" x 14" / 102 x 254 x 356 mm)
  • BG52510-14SF (5 ¼" x 10" x14" / 133 x 254 x 356 mm)
  • BG610-14SF (6" x 10" x 14" / 162 x 254 x 356 mm)
  • BG67510-14SF (6 ¾" x 10" x 14" / 171 x 254 x 356 mm)

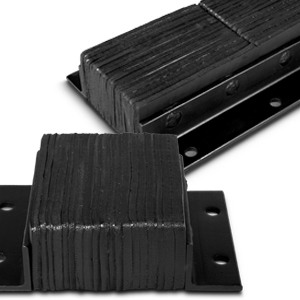

Compressed tire rubber and 3/8" (10 mm) angles give Automated Door Systems Sentinel Series Laminated Rubber bumpers a superior degree of impact power and durability. Extra-length versions are available for loading bays without a dock leveler installed.

PRODUCT DETAILS

• Standard 4" and 6" (102 mm and 152 mm) projection
• Dock bumper bracketing available to support larger projections
• Supports horizontal or vertical installations
• Wide range of sizes to suit different applications
• Two-year limited warranty
• Available models include:
  • BG410-14 (4" x 10" x 14" / 102 x 254 x 356 mm)
  • BG610-14 (6" x 10" x 14" / 162 x 254 x 356 mm)
  • BG810-14 (8" x 10" x 14" / 203 x 254 x 356 mm)
  • BG910-14 (9" x 10" x 14" / 229 x 254 x 356 mm)
  • BG1010-14 (10" x 10" x 14" / 254 x 254 x 356 mm)
  • BG1210-14 (12" x 10" x 14" / 305 x 254 x 356 mm)

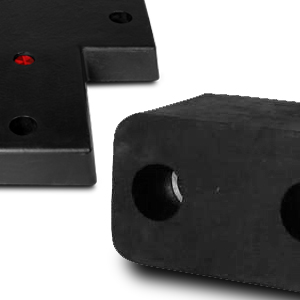

Automated Door Systems Sentinel Series Molded Rubber bumpers are manufactured from reinforced prime rubber and have an average impact recovery of 98%, ensuring solid and dependable loading dock protection. Each bumper has pre-drilled mounting holes for easy installation and only requires ¾" (19 mm) anchor bolts.

PRODUCT DETAILS

• 2", 3", 4", or 6" (51 mm, 76 mm, 102 mm, or 152 mm) projection available
• Supports horizontal or vertical installations
• Wide range of sizes to suit different applications
• Available models include:
  • BG-MT422-22 (4" x 22" x 22" / 102 x 559 x 559 mm)
  • BG-M410-13T (4" x 10" x 13" / 102 x 254 x 330 mm)
  • BG-M410-30 (4" x 12" x 13" / 102 x 305 x 330 mm)
  • BG-ML418-18 (4" x 8" x 18" / 102 x 457 x 457 mm)
  • BG-M410-30 (4" x 10" x 30" / 102 x 254 x 762 mm)
  • BG-M345-30 (3" x 4 ½ " x 30" / 76 x 102 x 762 mm)

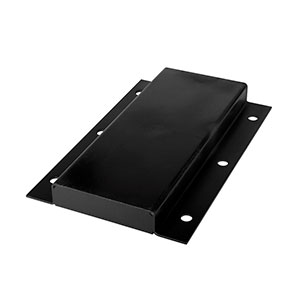

Bumper build-outs are recommended when more projection is needed due to sloped approach.


• Available in extensions of 2", 4", 6", and 8" (51 mm, 102 mm, 152 mm, and 203 mm)
• Ideal for situations where it may not be possible to project the dock

• Available in extensions of 2", 4", 6", and 8" (51 mm, 102 mm, 152 mm, and 203 mm)
• Made to measure for ideal application compatibility

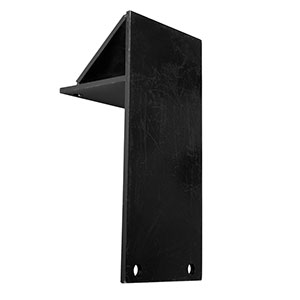

Bumper risers provide added installation support when the impact height is above dock level. The desired bumpers can be welded to the risers prior to shipping for a simpler, one-step installation.


• Available in extensions of 4", 6", 8", 10", and 12" (102 mm, 152 mm, 203 mm, 254 mm, and 305 mm)
• Prevents trailers from backing over top of the dock
