Name: D400
Brand: Door Doctor

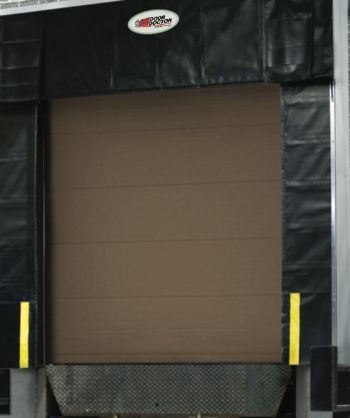

LDC D400 loading dock Stationary truck shelter

10’0”W X 10’0” H openings

Generally designed to suit 10´ wide x 10´ high openings. The series D400 provides full access to the rear of the trailer while creating a tight seal against the top and sides of the truck. Wear flaps are located on the head curtain at the contact areas and a double layer of fabric is sewn onto the bottom 24˝ of the side curtains for added reinforcement. With one of the largest selections and colours of fabrics available, LDC can offer the ideal solution for your unique loading dock requirements.

SAVE hundreds of dollars in reduced energy costs
IMPROVE working conditions by keeping dust, dirt, debris and insects out
PROTECT product and personnel from harsh weather conditions
INCREASE PRODUCTIVITY by providing a safe and comfortable working environment
DURABLE range of Hi-Performance fabrics to choose from
CUSTOM sizes available to suit any loading dock specifications

- Specifications
- Customize

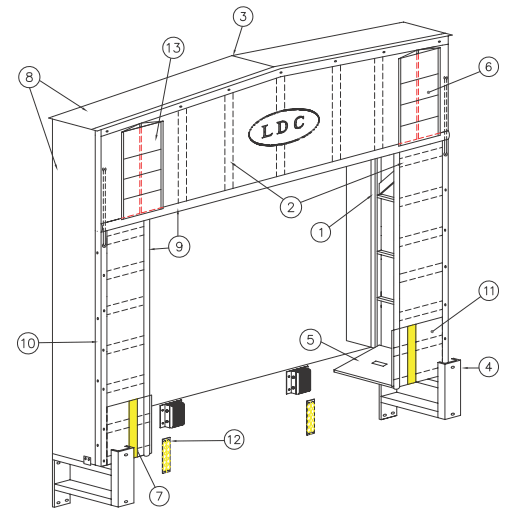

Specifications

1- Pressure treated framing resists rot (optional galvanized frame available)

2- Stiffeners in head and side curtains help to maintain constant pressure against trailer ensuring a tight seal

3- Raked head frame diverts water to sides

4- Protective steel guards

5- Replaceable wear flaps on head curtain help to extend life of unit

7- 24" yellow guides ensure accurate placement of trucks

8- Translucent polyethylene sheeting with UV inhibitors allows light into loading dock area

9- Foam filled edge creates a complete seal against truck

10- Galvanized trim angle will not rust

11- Double layer of protective fabric on bottom 24" of side curtains

12- Optional "REFLECTIVE GUIDES" to protect your investment

13- Optional Gusset available(Strongly recommended)
Customize Your Dock to Suit Your Specific Needs
Conventional foam pads protect against weather, but restricts access to the trailer opening.
LDC’s D400 shelter provides full access to the rear of the trailer.

Fabric
You can customize your dock seal with the ideal fabric for your application from a wide range of colours and fabrics available.

22 oz Hi-Tear Vinyl

32 oz Hi-Tear Vinyl

40 oz Hi-Tear Vinyl

Hi-Performance Artic Seal

16 oz Hi-Tear Hypalon

40 oz Hi-Performance Hypalon
Specifications
Specifications
- 1- Pressure treated framing resists rot (optional galvanized frame available)
- 2- Stiffeners in head and side curtains help to maintain constant pressure against trailer ensuring a tight seal
- 3- Raked head frame diverts water to sides
- 4- Protective steel guards
- 5- Replaceable wear flaps on head curtain help to extend life of unit
- 7- 24" yellow guides ensure accurate placement of trucks
- 8- Translucent polyethylene sheeting with UV inhibitors allows light into loading dock area
- 9- Foam filled edge creates a complete seal against truck
- 10- Galvanized trim angle will not rust
- 11- Double layer of protective fabric on bottom 24" of side curtains
- 12- Optional "REFLECTIVE GUIDES" to protect your investment
- 13- Optional Gusset available(Strongly recommended)
Customize
Customize Your Dock to Suit Your Specific Needs
Conventional foam pads protect against weather, but restricts access to the trailer opening.
LDC’s D400 shelter provides full access to the rear of the trailer.

Fabric
You can customize your dock seal with the ideal fabric for your application from a wide range of colours and fabrics available.
- 22 oz Hi-Tear Vinyl
- 32 oz Hi-Tear Vinyl
- 40 oz Hi-Tear Vinyl
- Hi-Performance Artic Seal
- 16 oz Hi-Tear Hypalon
- 40 oz Hi-Performance Hypalon
Downloads:
- Brochure (PDF)
