Name: D100
Brand: Door Doctor

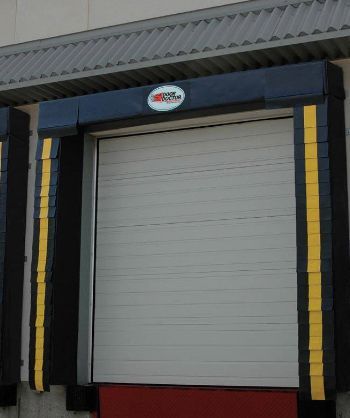

LDC D100 loading dock head curtain

8’0” w x 8’0” h openings

Generally designed to suit 10' wide x 8' high openings. This unit is recommended for wider door openings when conventional side pads won't work. This unit combines full access on the sides of the trailer while a compressible top pad that creates a tight seal above the door opening. Two foam side pads seal the gap between the building wall and the truck. With one of the largest selections and colours of fabrics available, LDC can offer the ideal solution for your unique loading dock requirements.

SAVE hundreds of dollars in reduced energy costs
IMPROVE working conditions by keeping dust, dirt, debris and insects out
PROTECT product and personnel from harsh weather conditions
INCREASE PRODUCTIVITY by providing a safe and comfortable working environment
DURABLE range of Hi-Performance fabrics to choose from
CUSTOM sizes available to suit any loading dock specifications

Specifications

Higher head pads: can be used to suit a variety of trailer heights (available in 18'' or 24'')

Drop curtain: can be ordered for installation below the head pad to cover lower trucks

PVC Drop curtain: are an excellent way to create a better seal for lower trucks made from low temp PVC

Beveled pads: when trucks to be serviced are below the top of the dock door, the head pad can be beveled to keep the wood framing out of the doorway and minimize obstructions
Wear Flaps Provide Extra Protection
To maximize long term performance of your dock seal, overlapping flaps are applied at the corners of the head pad and full height of the side pads. The wear flaps will absorb the added abrasion the occurs at high wear areas. Wear flaps are available with 4", 6" or 8" exposure. Available in a wide range of fabrics and colours.
Incline
Incline approach
Beveled pads (Top view)
Decline approach

Fabric
You can customize your dock seal with the ideal fabric for your application from a wide range of colours and fabrics available.

22 oz Hi-Tear Vinyl

32 oz Hi-Tear Vinyl

40 oz Hi-Tear Vinyl

Hi-Performance Artic Seal

16 oz Hi-Tear Hypalon

40 oz Hi-Performance Hypalon
Specifications
Specifications
- Higher head pads: can be used to suit a variety of trailer heights (available in 18'' or 24'')
- Drop curtain: can be ordered for installation below the head pad to cover lower trucks
- PVC Drop curtain: are an excellent way to create a better seal for lower trucks made from low temp PVC
- Beveled pads: when trucks to be serviced are below the top of the dock door, the head pad can be beveled to keep the wood framing out of the doorway and minimize obstructions
More info
Wear Flaps Provide Extra Protection
To maximize long term performance of your dock seal, overlapping flaps are applied at the corners of the head pad and full height of the side pads. The wear flaps will absorb the added abrasion the occurs at high wear areas. Wear flaps are available with 4", 6" or 8" exposure. Available in a wide range of fabrics and colours.
Customize
Incline
Incline approach
Beveled pads (Top view)
Decline approach

Fabric
You can customize your dock seal with the ideal fabric for your application from a wide range of colours and fabrics available.
- 22 oz Hi-Tear Vinyl
- 32 oz Hi-Tear Vinyl
- 40 oz Hi-Tear Vinyl
- Hi-Performance Artic Seal
- 16 oz Hi-Tear Hypalon
- 40 oz Hi-Performance Hypalon
Downloads:
- Brochure
