Aluminium glass doors from Vertech 1780 Series
Aluminium glass doors form Vertech 1780 Series are deluxe doors with narrow stiles that offer unmatched performance. Also choose from many clear tempered glass doors, without stiles. All Vertech aluminum extruded components shall be of 6063-T5 alloy, and glass stops to be snap-on type. Corners will be mortised and welded, and a steel rod inserted in bottom rail and bolted at both ends will complete the assembly. Aluminium glass doors shall be guarantied against defective materials for a period of one year after acceptance of work.
- Door thickness 1 3/4".
- Stile width 1".
- Top rail height 4 1/8".
- Bottom rail height 4 1/8".
- Optional divider of variable height.
- Mechanical assembled.
- Lock in bottom rail.
- Center hung application only.
- Prepared for 3/8" or 1/2" glazing only.
- Door thickness 1 3/4".
- Top rail height 4 1/8".
- Bottom rail height 4 1/8".
- Lock located in bottom rail.
- Choice of alternate top and bottom rail.
- Brass or stainless steel cover available.
- Center hung application only.
- Supplied with 1/2" clear tempered glass.
Please note that colors may vary according to your screen settings. For further information, please contact us.
Anodized aluminium
Anodized bronze

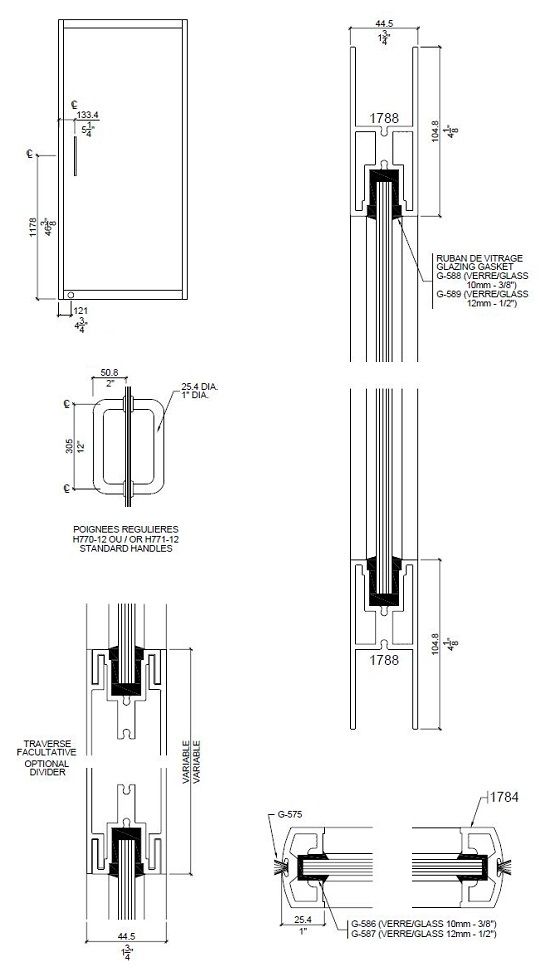

Anodized brownTo learn more about fire safety standards, please click here.1780
- Door thickness 1 3/4".
- Stile width 1".
- Top rail height 4 1/8".
- Bottom rail height 4 1/8".
- Optional divider of variable height.
- Mechanical assembled.
- Lock in bottom rail.
- Center hung application only.
- Prepared for 3/8" or 1/2" glazing only.

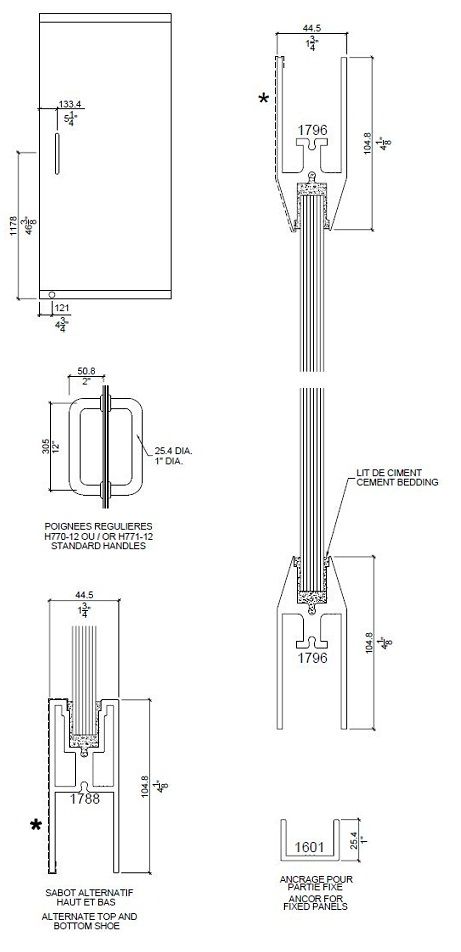

1790
- Door thickness 1 3/4".
- Top rail height 4 1/8".
- Bottom rail height 4 1/8".
- Lock located in bottom rail.
- Choice of alternate top and bottom rail.
- Brass or stainless steel cover available.
- Center hung application only.
- Supplied with 1/2" clear tempered glass.
Swing designation
Colours
Please note that colors may vary according to your screen settings. For further information, please contact us. Anodized aluminium Anodized bronze Anodized brownFire safety standards
To learn more about fire safety standards, please click here.Downloads:
