Aluminium glass doors from Vertech 1600 Series
Aluminium glass doors form Vertech 1600 Series are a heavy duty assembly that offers unmatched performance. 1600 Series has several basic models with narrow or wide stiles that can accomodate most of all types of harware. Also choose from many thermally broken models. All Vertech aluminum extruded components shall be of 6063-T5 alloy, and glass stops to be snap-on type. Corners will be mortised and welded, and a steel rod inserted in bottom rail and bolted at both ends will complete the assembly. Aluminium glass doors shall be guarantied against defective materials for a period of one year after acceptance of work.
- Opening sizes : 31 1/8" x 77" (791 mm x 1956 mm).
- Door thickness 1 3/4".
- Stiles width 2 1/8".
- Top rail height 1 7/8".
- Bottom rail height 3 3/4".
- Welded mortised assembly.
- Snap-on glass stops.
- Adjustment screw in top rail.
- Continuous steel rod in bottom rail.
- Optional glass stop #1606 for 7/8" sealed unit.
- Opening sizes : 31 1/8" x 77" (791 mm x 1956 mm).
- Thermally broken door.
- Door thickness 2".
- Stile width 2 15/16".
- Top rail height 2 3/4".
- Bottom rail height 4 5/8".
- Welded mortised assembly.
- Snap-on glass stops.
- Adjustment screw in top rail.
- Continuous steel rod in bottom rail.
- For 7/8" sealed unit glazing.
- Opening sizes : 28 5/16" x 72" (719 mm x 1830 mm).
- Door thickness 1 3/4".
- Stiles width 3 1/2".
- Top rail height 3 3/4".
- Bottom rail height 6 15/16".
- Welded mortised assembly with reinforcing angles.
- Snap-on glass stops.
- Adjusment screw in top rail.
- Continuous steel rod in bottom rail.
- Optional glass stop #1606 for 7/8" sealed unit.
- Opening sizes : 28 5/16" x 72" (719 mm x 1830 mm).
- Thermally broken door.
- Door thickness 2".
- Stile width 4 3/8".
- Top rail height 4 5/8".
- Bottom rail height 7 13/16".
- Welded mortised assembly with reinforcing angles.
- Snap on-glass stops.
- Adjustment screw in top rail.
- Continuous steel rod in bottom rail.
- For 7/8" sealed unit glazing.
Please note that colors may vary according to your screen settings. For further information, please contact us.
Anodized aluminium
Anodized bronze
Anodized brownTo learn more about fire safety standards, please click here.1600

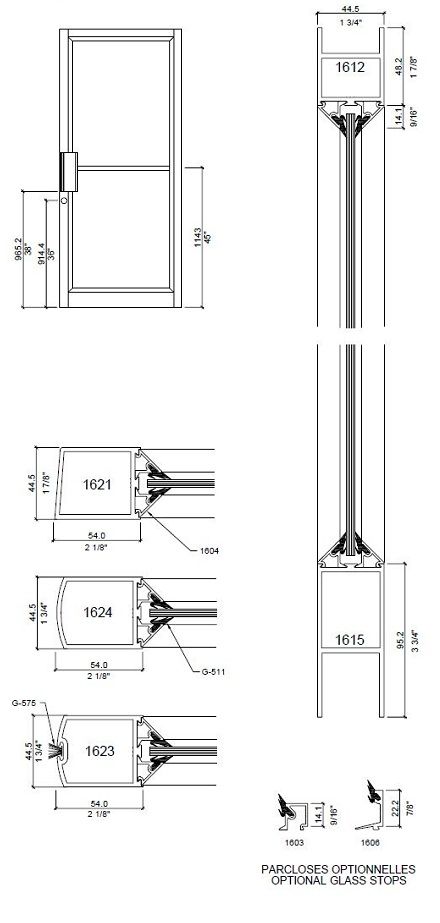

- Opening sizes : 31 1/8" x 77" (791 mm x 1956 mm).
- Door thickness 1 3/4".
- Stiles width 2 1/8".
- Top rail height 1 7/8".
- Bottom rail height 3 3/4".
- Welded mortised assembly.
- Snap-on glass stops.
- Adjustment screw in top rail.
- Continuous steel rod in bottom rail.
- Optional glass stop #1606 for 7/8" sealed unit.

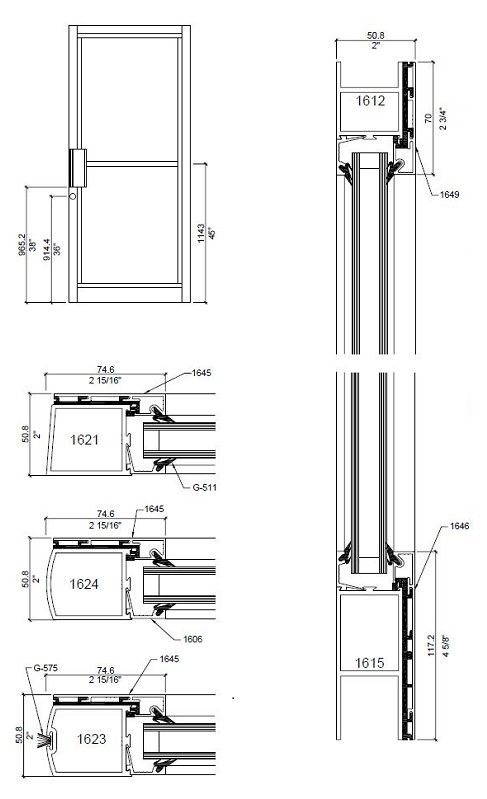

1650
- Opening sizes : 31 1/8" x 77" (791 mm x 1956 mm).
- Thermally broken door.
- Door thickness 2".
- Stile width 2 15/16".
- Top rail height 2 3/4".
- Bottom rail height 4 5/8".
- Welded mortised assembly.
- Snap-on glass stops.
- Adjustment screw in top rail.
- Continuous steel rod in bottom rail.
- For 7/8" sealed unit glazing.

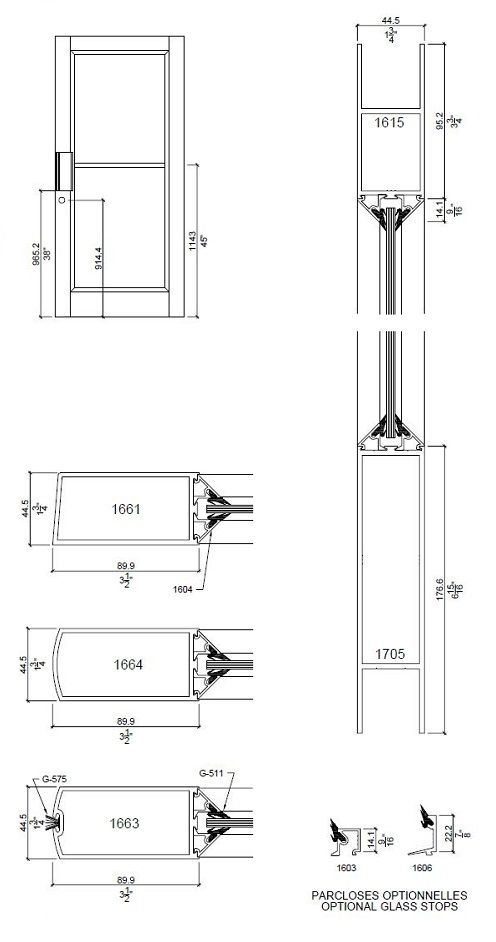

1660
- Opening sizes : 28 5/16" x 72" (719 mm x 1830 mm).
- Door thickness 1 3/4".
- Stiles width 3 1/2".
- Top rail height 3 3/4".
- Bottom rail height 6 15/16".
- Welded mortised assembly with reinforcing angles.
- Snap-on glass stops.
- Adjusment screw in top rail.
- Continuous steel rod in bottom rail.
- Optional glass stop #1606 for 7/8" sealed unit.

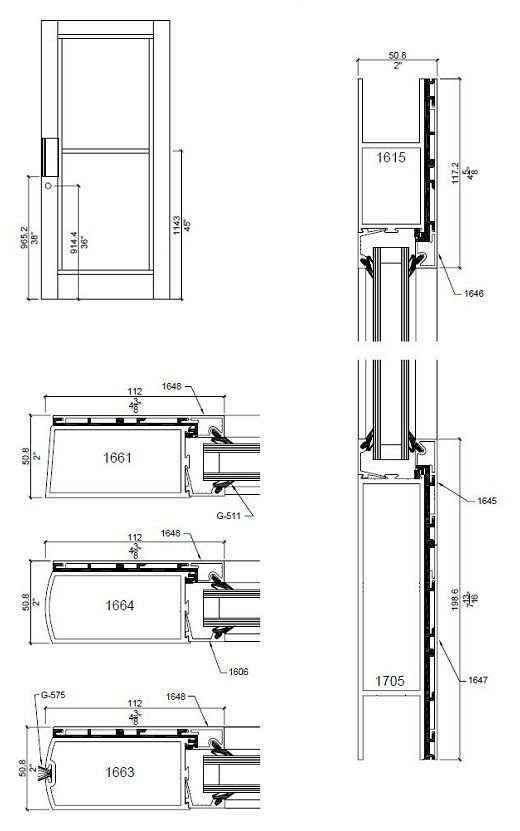

1675
- Opening sizes : 28 5/16" x 72" (719 mm x 1830 mm).
- Thermally broken door.
- Door thickness 2".
- Stile width 4 3/8".
- Top rail height 4 5/8".
- Bottom rail height 7 13/16".
- Welded mortised assembly with reinforcing angles.
- Snap on-glass stops.
- Adjustment screw in top rail.
- Continuous steel rod in bottom rail.
- For 7/8" sealed unit glazing.
Swing designation
Colours
Please note that colors may vary according to your screen settings. For further information, please contact us. Anodized aluminium Anodized bronze Anodized brownFire safety standards
