- Door height
- Door width
- Horsepower
- Voltage/Phase
- Safety Devices
- Options

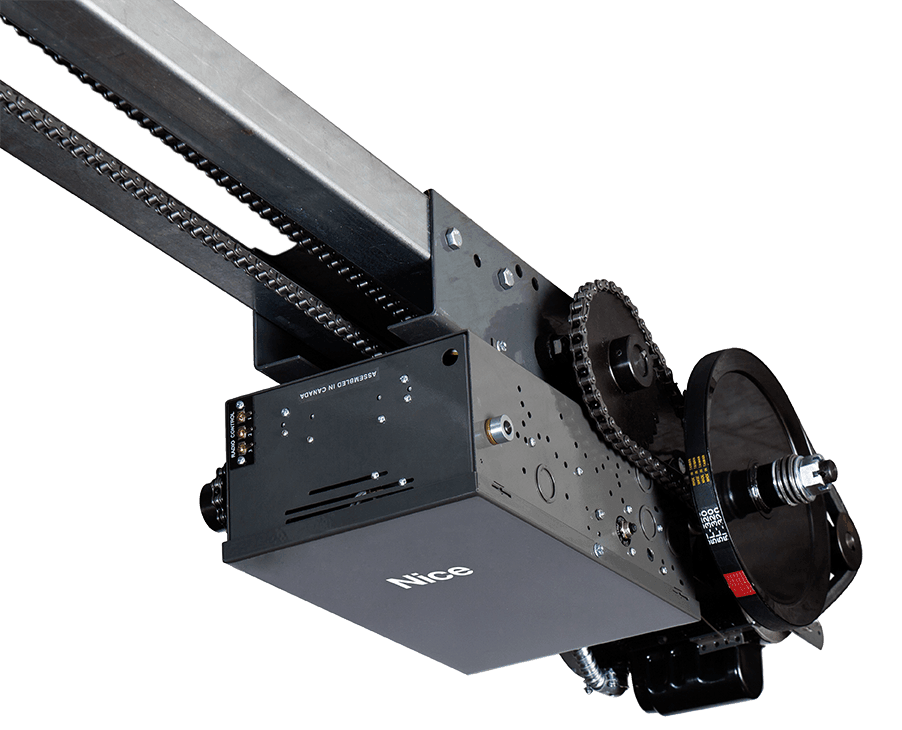

Trolley Operator Pro-T
The PRO-T is designed for use on commercial/industrial sectional overhead doors with standard lift tracks. Commercial/industrial continuous duty belt drive trolley operator * UL325 (2010) compliant When ordering a PRO-T operator, supply us with the following information:
- 2 year Warranty
- 3 Control Circuit Options Available: 1-(M) Heavy duty reversing contactor with mechanical & electrical interlock incorporating the new UL325 (20l0) Interface Module. *C2 factory wiring standard (constant pressure close), B2 wiring can be field set by moving 1 jumper and installing Micanan monitored fail safe photo eyes (supplied) or (optional) Micanan compatible monitored fail safe electric edge 2- (E) Full Function Smart 10.0 Logic control board featuring on-board receiver with antenna, enhanced program selections to include B2, C2, D1, E2, T & TS and supplied with Micanan monitored fail safe photo-cells or {optional} Mlcanan monitored fail safe electric edge *C1 factory pre-set mode of operation standard (constant pressure open & close) 3- Heavy duty reversing contactor with mechanical & electrical interlock. (Not avallable in US or other areas where Ul325 (2010) is mandated} *C2 factory wiring standard, B2 wiring can be field set by moving 1 jumper. Provisions for standard reversing devices.
- 24V class 2 control circuit with 40VA transformer to protect against short circuit
- External radio control terminal strip
- Low friction powder metal limit cam nuts with fully adjustable rotary type limit switch assembly
- Three button open-close-stop control station Nema-1
- Continuous duty industrial motor with overload protection
- Motor removable without affecting limit settings

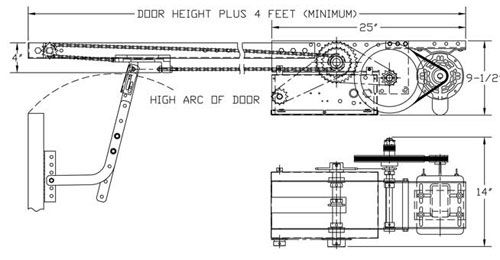

- Low headroom clearance design (9.5")
- Heavy duty 5L V-belt
- #41 roller chain & sprockets on all internal drives
- Adjustable friction clutch
- 3/4" permanently lubricated & sealed ball bearings on pulley shaft
- 1" permanently lubricated & sealed ball bearings on final drive shaft
- Emergency quick release disconnect for manual operation
- #48 roller chain drive on 1/3, 1/2 HP models
- #41 roller chain drive on 3/4, 1 HP models
- Trolley track for doors up to 12' standard
- Door speed 12" per second
- Baked on dark grey coat finish
- Shipping weight 80 Ibs {excludes ralls}
NEW SMART 10.0 LOGIC BOARD
- On-board open, close, stop push buttons.
- Built-in 372 Mhz radio receiver
- Programable timer to close
- Programable mid stop
- Maximum run timer
- 1.5 sec time delay reverse
- Programable delay on close
- On-board fuse protection
- Plug in board option
- New vision lights
Features
- 2 year Warranty
- 3 Control Circuit Options Available: 1-(M) Heavy duty reversing contactor with mechanical & electrical interlock incorporating the new UL325 (20l0) Interface Module. *C2 factory wiring standard (constant pressure close), B2 wiring can be field set by moving 1 jumper and installing Micanan monitored fail safe photo eyes (supplied) or (optional) Micanan compatible monitored fail safe electric edge 2- (E) Full Function Smart 10.0 Logic control board featuring on-board receiver with antenna, enhanced program selections to include B2, C2, D1, E2, T & TS and supplied with Micanan monitored fail safe photo-cells or {optional} Mlcanan monitored fail safe electric edge *C1 factory pre-set mode of operation standard (constant pressure open & close) 3- Heavy duty reversing contactor with mechanical & electrical interlock. (Not avallable in US or other areas where Ul325 (2010) is mandated} *C2 factory wiring standard, B2 wiring can be field set by moving 1 jumper. Provisions for standard reversing devices.
- 24V class 2 control circuit with 40VA transformer to protect against short circuit
- External radio control terminal strip
- Low friction powder metal limit cam nuts with fully adjustable rotary type limit switch assembly
- Three button open-close-stop control station Nema-1
- Continuous duty industrial motor with overload protection
- Motor removable without affecting limit settings
- Low headroom clearance design (9.5")
- Heavy duty 5L V-belt
- #41 roller chain & sprockets on all internal drives
- Adjustable friction clutch
- 3/4" permanently lubricated & sealed ball bearings on pulley shaft
- 1" permanently lubricated & sealed ball bearings on final drive shaft
- Emergency quick release disconnect for manual operation
- #48 roller chain drive on 1/3, 1/2 HP models
- #41 roller chain drive on 3/4, 1 HP models
- Trolley track for doors up to 12' standard
- Door speed 12" per second
- Baked on dark grey coat finish
- Shipping weight 80 Ibs {excludes ralls}

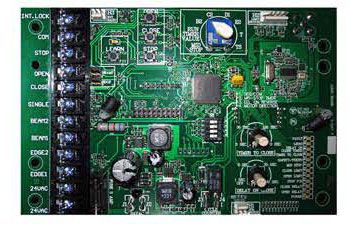

Logic Board
NEW SMART 10.0 LOGIC BOARD - On-board open, close, stop push buttons.
- Built-in 372 Mhz radio receiver
- Programable timer to close
- Programable mid stop
- Maximum run timer
- 1.5 sec time delay reverse
- Programable delay on close
- On-board fuse protection
- Plug in board option
- New vision lights
