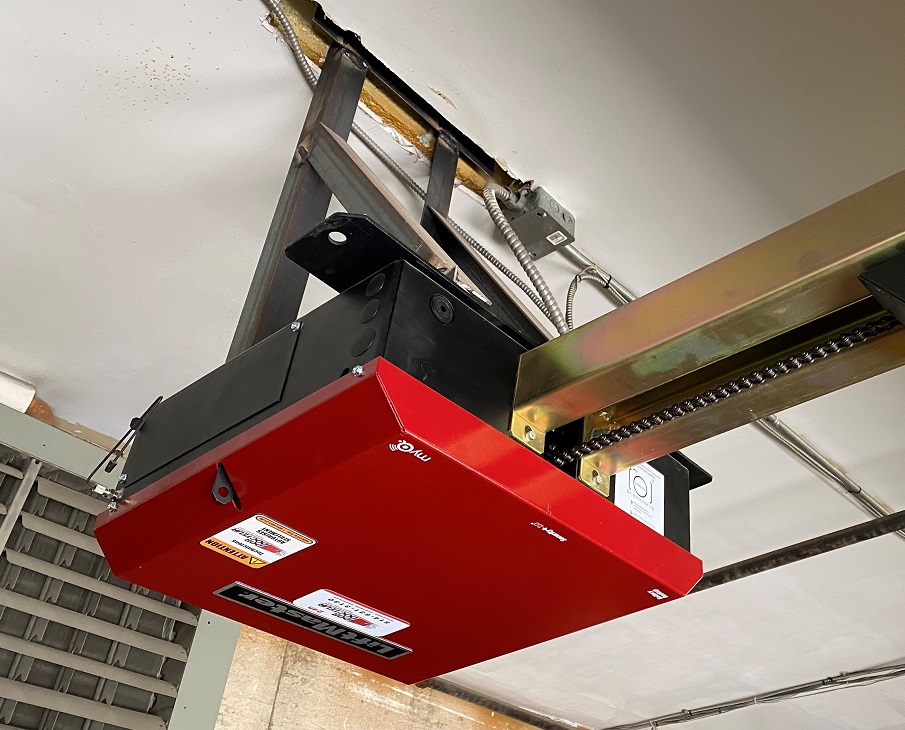

Name: LiftMaster HCTDCUL
Brand: Door Doctor

LiftMaster HCTDCUL Silent

The HCTDCUL model, as manufactured by LiftMaster, is the ultimate high-traffic door and gate opener for apartment houses and low-profile applications. It is meeting the challenge of today's high cycle applications by providing the ultimate in durability, quiet operation and security.

Travel time is adjusted by a precision mechanical device and electrical limit switch system.
Integrated loop detectors.
Board includes electronic power management with overcurrent shutdown and automatic recovery.
Instant reversing parking gate Leeson Motor.
Gear drive system lubricated in an oil bath.
C-mounted continuous cycle motor.
Smooth-gliding trolley
Heavy-duty rubber isolators help prevent noise and absorb vibration.
Adjustable timer can be set up to 180 seconds.
Homelink compatible.
UL and CSA listed.
5-year warranty.

Single phase: 120 V and 230 V

Horsepower: DC motor, 24DC, 500mA, continuous-duty motor

Minimum extra headroom required: 4 inches (102 mm)

Security system: Security+ 2.0, technology that utilizes a tri-band signal

Battery backup (7Ah): 2 batteries providing up to 112 cycles or up to 24 days.

Specifically engineered to meet the needs of apartment houses, condominiums and low-clearance installations, the model HCTDCUL delivers unsurpassed safety, dependability and quiet operation. In a class by itself, the HCTDCUL is a heavy-duty, high-traffic operator designed with many exclusive features, including a Security+® receiver, built-in electronic reversing device, heavy-duty track and keyed trolley assembly.

Trolley type door opener

Total length installed:

8 ft rails: 121.5 inches

10 ft rails: 145.5 inches

12 ft rails: 169.5 inches

The HCTDCUL is designed for installation in even the tightest applications. At only 8 inches high, it's up to 10 inches shorter than other overhead operators. In addition, it's extremely quiet so as not to disturb tenants living directly above the garage. For added safety, the HCT includes a key release feature for instant access in case of power failure. And all components are fully enclosed to greatly reduce the risk of injury.

Advanced control board

Electronic reversing device

Built-in radio receiver

Noise isolators

Trolley assembly and key release

DC motor, C-mounted continuous cycle motor

Included in package:

LiftMaster HCTDCUL door opener

Saftey photoelectric sensors (CPSUN4G)

On-board receiver

Rail according to door height (in separate packaging)

2 backup batteries (29-NP712)

* Remotes and wall station optional
Security+^® The HCTDCUL is equipped with a Security+® rolling code receiver. With every activation, Security+^® transmits a brand-new code, one of over 100-billion codes, never to be repeated.

The HCTDCUL includes a key release feature for instant access in case of power failure. And ail components are fully enclosed to greatly reduce the risk of injury.

Auto-reverse and safety alarm system comes standard. If the door or gate ever comes in contact with a vehicle while closing, it re-opens. If it contacts a vehicle while opening, it stops, reverses 4 to 6 inches and stops again.

If the door or gate hits an object twice while opening or closing, the system will shut down and the alarm will sound for five minutes. After five minutes, the system will automatically reset itself. To reset within the five-minute period, the manual reset button must be activated.
3-button commercial wall control panels
The 880LM is a smart control panel that lets you program your remote controls quickly. It comes with a lighted LCD screen.
It is compatible with LiftMaster’s Security+ 2.0 door openers and is equipped with a timer that automatically closes the garage door (when a time has been preprogrammed).
It shows the time, temperature and any needed maintenance. It has built-in motion detector that activates the door opener lights.
It features a LOCK button that blocks all use of the door opener if maintenance is needed.
The 881LM is a wall-mounted control panel.
It is compatible with LiftMaster Security+ 2.0 door openers with a YELLOW learn button and is equipped with a timer that automatically closes the garage door after a pre-programmed number of minutes.
It has an integrated motion detector that turn on opener lights automatically.
It features a LOCK button that blocks all use of the door opener if maintenance is needed.
The 886LM is a motion-detecting control panel.
It is compatible with LiftMaster Security+ 2.0 door openers. It automatically turns on the opener light when motion is detected by its sensor.
It features a light control button, a LOCK button to deactivate all remote controls for extra security, and a maintenance alert system.

1-button wall station/reset switch
1-button metal wall station for interior only. Comes standard with the LJ8900W and is compatible with commercial opeartors to use as a 1-button station. Can also be used as an external RESET button for the HCTDCUL.

3-button remote control
This powerful multi‑door control can operate up to 3 garage door openers, gate operators, or MyQ^TM enabled light accessories. Plus, it's compatible with all LiftMaster^® garage door openers manufactured since 1993.

Encrypted DIP single button Remote Control
This single button remote control have 12 position DIP programming offers up to 4,096 codes. Encrypted to prevent code theft.

Encrypted DIP 3-button remote control
This remote control can operate a commercial door opener in open, close and stop mode.

Commercial Access Receiver
The LiftMaster STAR1000 access solution to manage multiple access points, such as control remote parking or a portal. The individual programming or bulk STAR1000 process simplifies the encoding of a large number of remotes.

Single entry access control keypad and proximity reader
A secure and vandal‑resistant controller. This keypad and proximity card reader is simple to install and looks great.

Red/Green traffic light
Indicates door or gate position. Provides assurance of safe entering and exiting of the facility, reducing the potential for costly accidents.

Pneumatic Sensing Edge Kit with exterior air switch
When a standard photo eyes protection system is present, a 2‑wire pneumatic sensing edge (air hose) may be added under the door as an ancillary protection device.
(655202) Pneumatic Sensing Edge Kit with exterior air switch, 2-wire take‑up reel (20' extended) and 14' air hose.
(655302) Pneumatic Sensing Edge Kit with exterior air switch, 2‑wire take‑up reel (20' extended) and 22' air hose.
(658202) Pneumatic Sensing Edge Kit with exterior air switch, 2‑wire coil cord and 14' air hose.
(658302) Pneumatic Sensing Edge Kit with exterior air switch, 2‑wire coil cord and 22' air hose.

Light curtain
The Light Curtain provides 36 inches of increased zone coverage for additional protection; indoor use. Maximum range of 33 foot.

Microwave motion sensor
This Motion Sensor detects objects moving toward or away from the door. Invisible microwave detection field can be set manually or with optional 50-HERK-RC2 remote.

LiftMaster internet gatewayTM
This revolutionary new accessory features built‑in MyQ^TM technology that connects to the Internet and allows you to monitor and operate your garage door opener, or turn on or off lights in or around your home, from anywhere in the world by using your smartphone or computer. It utilizes a two-way communication system that puts freedom and control in your hands.
Features
- Single phase: 120 V and 230 V
- Horsepower: DC motor, 24DC, 500mA, continuous-duty motor
- Minimum extra headroom required: 4 inches (102 mm)
- Security system: Security+ 2.0, technology that utilizes a tri-band signal
- Battery backup (7Ah): 2 batteries providing up to 112 cycles or up to 24 days.
- Specifically engineered to meet the needs of apartment houses, condominiums and low-clearance installations, the model HCTDCUL delivers unsurpassed safety, dependability and quiet operation. In a class by itself, the HCTDCUL is a heavy-duty, high-traffic operator designed with many exclusive features, including a Security+® receiver, built-in electronic reversing device, heavy-duty track and keyed trolley assembly.
- Trolley type door opener
- Total length installed:

  8 ft rails: 121.5 inches

  10 ft rails: 145.5 inches

  12 ft rails: 169.5 inches
- The HCTDCUL is designed for installation in even the tightest applications. At only 8 inches high, it's up to 10 inches shorter than other overhead operators. In addition, it's extremely quiet so as not to disturb tenants living directly above the garage. For added safety, the HCT includes a key release feature for instant access in case of power failure. And all components are fully enclosed to greatly reduce the risk of injury.
- Advanced control board
- Electronic reversing device
- Built-in radio receiver
- Noise isolators
- Trolley assembly and key release
- DC motor, C-mounted continuous cycle motor
Included in package:
- LiftMaster HCTDCUL door opener
- Saftey photoelectric sensors (CPSUN4G)
- On-board receiver
- Rail according to door height (in separate packaging)
- 2 backup batteries (29-NP712)
* Remotes and wall station optional
Security Systems
- Security+^® The HCTDCUL is equipped with a Security+® rolling code receiver. With every activation, Security+^® transmits a brand-new code, one of over 100-billion codes, never to be repeated.
- The HCTDCUL includes a key release feature for instant access in case of power failure. And ail components are fully enclosed to greatly reduce the risk of injury.
- Auto-reverse and safety alarm system comes standard. If the door or gate ever comes in contact with a vehicle while closing, it re-opens. If it contacts a vehicle while opening, it stops, reverses 4 to 6 inches and stops again.
- If the door or gate hits an object twice while opening or closing, the system will shut down and the alarm will sound for five minutes. After five minutes, the system will automatically reset itself. To reset within the five-minute period, the manual reset button must be activated.
Optional Accessories
3-button commercial wall control panels
The 880LM is a smart control panel that lets you program your remote controls quickly. It comes with a lighted LCD screen.
It is compatible with LiftMaster’s Security+ 2.0 door openers and is equipped with a timer that automatically closes the garage door (when a time has been preprogrammed).
It shows the time, temperature and any needed maintenance. It has built-in motion detector that activates the door opener lights.
It features a LOCK button that blocks all use of the door opener if maintenance is needed.
The 881LM is a wall-mounted control panel.
It is compatible with LiftMaster Security+ 2.0 door openers with a YELLOW learn button and is equipped with a timer that automatically closes the garage door after a pre-programmed number of minutes.
It has an integrated motion detector that turn on opener lights automatically.
It features a LOCK button that blocks all use of the door opener if maintenance is needed.
The 886LM is a motion-detecting control panel.
It is compatible with LiftMaster Security+ 2.0 door openers. It automatically turns on the opener light when motion is detected by its sensor.
It features a light control button, a LOCK button to deactivate all remote controls for extra security, and a maintenance alert system.

1-button wall station/reset switch
1-button metal wall station for interior only. Comes standard with the LJ8900W and is compatible with commercial opeartors to use as a 1-button station. Can also be used as an external RESET button for the HCTDCUL.

3-button remote control
This powerful multi‑door control can operate up to 3 garage door openers, gate operators, or MyQ^TM enabled light accessories. Plus, it's compatible with all LiftMaster^® garage door openers manufactured since 1993.

Encrypted DIP single button Remote Control
This single button remote control have 12 position DIP programming offers up to 4,096 codes. Encrypted to prevent code theft.

Encrypted DIP 3-button remote control
This remote control can operate a commercial door opener in open, close and stop mode.

Commercial Access Receiver
The LiftMaster STAR1000 access solution to manage multiple access points, such as control remote parking or a portal. The individual programming or bulk STAR1000 process simplifies the encoding of a large number of remotes.

Single entry access control keypad and proximity reader
A secure and vandal‑resistant controller. This keypad and proximity card reader is simple to install and looks great.

Red/Green traffic light
Indicates door or gate position. Provides assurance of safe entering and exiting of the facility, reducing the potential for costly accidents.

Pneumatic Sensing Edge Kit with exterior air switch
When a standard photo eyes protection system is present, a 2‑wire pneumatic sensing edge (air hose) may be added under the door as an ancillary protection device.
(655202) Pneumatic Sensing Edge Kit with exterior air switch, 2-wire take‑up reel (20' extended) and 14' air hose.
(655302) Pneumatic Sensing Edge Kit with exterior air switch, 2‑wire take‑up reel (20' extended) and 22' air hose.
(658202) Pneumatic Sensing Edge Kit with exterior air switch, 2‑wire coil cord and 14' air hose.
(658302) Pneumatic Sensing Edge Kit with exterior air switch, 2‑wire coil cord and 22' air hose.

Light curtain
The Light Curtain provides 36 inches of increased zone coverage for additional protection; indoor use. Maximum range of 33 foot.

Microwave motion sensor
This Motion Sensor detects objects moving toward or away from the door. Invisible microwave detection field can be set manually or with optional 50-HERK-RC2 remote.

LiftMaster internet gatewayTM
This revolutionary new accessory features built‑in MyQ^TM technology that connects to the Internet and allows you to monitor and operate your garage door opener, or turn on or off lights in or around your home, from anywhere in the world by using your smartphone or computer. It utilizes a two-way communication system that puts freedom and control in your hands.
